Inetlab.MMS.MM7

Overview

Inetlab.MMS.MM7 is a .NET library for sending and receiving MMS messages via MM7 protocol. The library communicates using XML-based SOAP with attachments messaging format, and relies on the HTTP as a transfer protocol. This is the easiest way to connect your Value-Added Service to any Multimedia Messaging Service Center (MMSC) and vice versa. This .NET component is extremely helpful for creating MMS Sever and MMS Client applications for both VASP and MMSC.

MMSC can use this library to provide MMS messaging for VASP customers. Thus, MM7Server able to operate in the MMSC mode, as well as MM7Client instance delivers MMS messages to the VASP endpoints.

Add reference to Inetlab.MMS.MM7 component in your .NET project and get advanced MMS tools in few clicks. It does not require you to learn a lot about protocols and MMS. The library has a range of classes and methods, providing both basic and advanced MMS capabilities.

Common scenarios based on our library are:

For content provider (VASP):

Submit MMS messages to MMSC with MM7Client class
Start MMS Server in VASP mode to get MMS messages and delivery receipts from the MMSC

For MMSC:

Use MM7Client class to deliver MMS messages and receipts to VASP
Start MMS Server in MMSC mode to receive submissions from MMS clients.

The Inetlab.MMS.MM7 component fully implements MM7 interface for MMS messaging. Use our code snippets and Visual Studio Demo-solution as a starting point for own MMS-based Service. You can rely on our development team for technical support and code review.

Features

MM7 Client

Features

Fast MMS sending via HTTP
Easy loading and sending MMS messages from a SMIL file
Sending/receiving multi-part messages
Sending Read-Reply reports
Sending DRM-protected content
Operating in VASP and MMSC mode
Delivering MMS and receipts to VASP endpoints in the MMSC mode
Submitting MMS to MMSC in the VASP mode
SSL/TLS support

MM7 Server

Features

Operates as a standalone HTTP server
Can handle requests using ASP.NET Http Handler in IIS server
Can be used as ASP.NET Core Middleware
Thread-safe, i.e. supports multiple concurrent connections
Provides events related to sending/receiving/confirming
Includes tools for extracting text, audio and video information from messages
Supports multi-part messages
Can be started in VASP or MMSC mode

CONTENT

Support for images, audio and video files
Support for all content types recommended by Open Mobile Alliance
Fail-proof encoding/decoding of MIME messages with attachments
Decode MMS PDU defined in the MMS Encapsulation Specification

Logging

Proper logging is extremely helpful when making messaging applications. The Inetlab.MMS.MM7 component provides advanced logging methods for console and file operations.

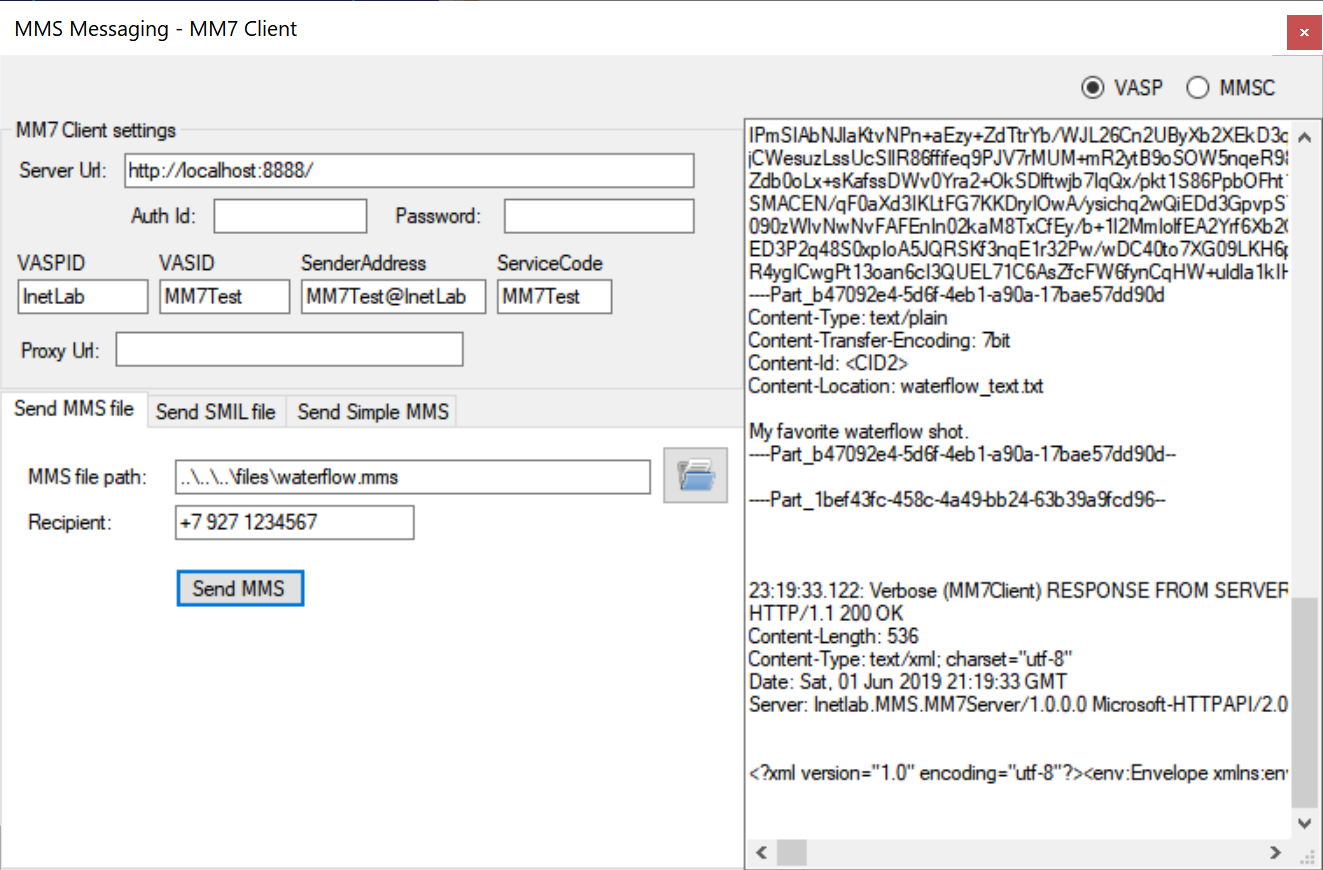

Send MMS with MM7Client

C#
VB.NET


MM7Client client = new MM7Client(url);

client.AuthId = authId;
client.AuthSecret = authSecret;
client.VASPID = vaspid;
client.VASID = vasid;
client.SenderAddress = senderAddress;
client.ServiceCode = serviceCode;

SubmitRequest req = client.CreateSubmitRequest();

req.Recipients.To.Add("+79171234567");

req.MessageClass = MessageClass.Personal;
req.DeliveryReport = true;
req.Subject = "Test";
req.Priority = Priorities.Normal;
req.ChargedParty = ChargedParty.Sender;
req.ContentHref = "/mms/mm7/mm7client";
req.TransactionID = DateTime.Now.Ticks.ToString();

try
{
    // Submit MMS Message as VASP
    SubmitResponse resp = client.Submit(smilFilePath, req);
    // Check response status
    if (resp.Status.StatusCode == 1000)
    {
        MessageBox.Show(
            "MMS message has been sent successully",
            "Server response",
            MessageBoxButtons.OK, MessageBoxIcon.Information);
    }
}
catch (MM7Exception ex)
{
    MessageBox.Show(
        ex.Message + Environment.NewLine +
        ex.Status.Details,
        "Server response error",
        MessageBoxButtons.OK, MessageBoxIcon.Error);
}
catch (WebException ex)
{
    MessageBox.Show(
        ex.Message,
        "Server connection error",
        MessageBoxButtons.OK, MessageBoxIcon.Error);
}


Dim client As New MM7Client(url)

client.AuthId = authId
client.AuthSecret = authSecret
client.VASPID = vaspid
client.VASID = vasid
client.SenderAddress = senderAddress
client.ServiceCode = serviceCode

Dim req As SubmitRequest = client.CreateSubmitRequest()

req.Recipients.To.Add("+79171234567")

req.MessageClass = MessageClass.Personal
req.DeliveryReport = True
req.Subject = "Test"
req.Priority = Priorities.Normal
req.ChargedParty = ChargedParty.Sender
req.ContentHref = "/mms/mm7/mm7client"
req.TransactionID = Date.Now.Ticks.ToString()

Try
	' Submit MMS Message as VASP
	Dim resp As SubmitResponse = client.Submit(smilFilePath, req)
	' Check response status
	If resp.Status.StatusCode = 1000 Then
		MessageBox.Show("MMS message has been sent successully",
                                 "Server response",
                                 MessageBoxButtons.OK, MessageBoxIcon.Information)
	End If
Catch ex As MM7Exception
	MessageBox.Show(ex.Message & Environment.NewLine & ex.Status.Details,
                             "Server response error",
                             MessageBoxButtons.OK, MessageBoxIcon.Error)
Catch ex As WebException
	MessageBox.Show(ex.Message,
                             "Server connection error",
                             MessageBoxButtons.OK, MessageBoxIcon.Error)
End Try

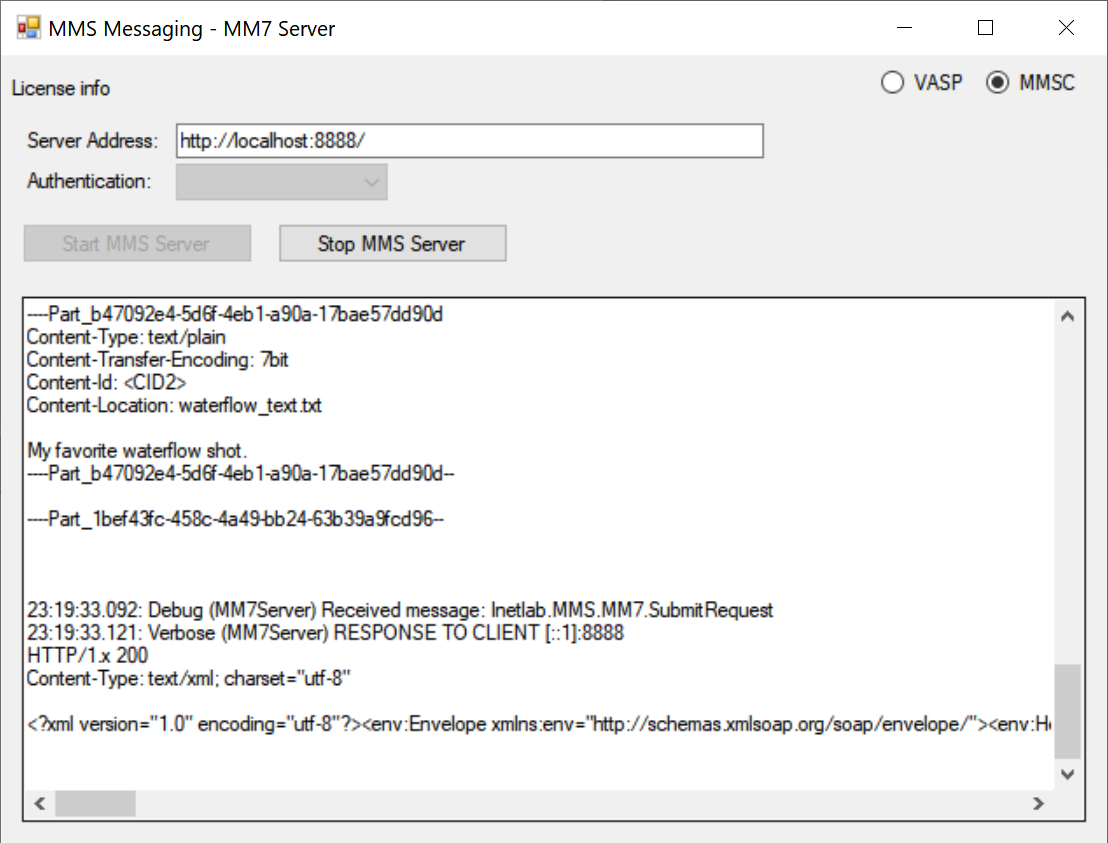

Create MM7Server

C#
VB.NET

                                            public class MMSServerForVASPExample
{
    private MM7Server _server;

    public MMSServerForVASPExample()
    {

        _server = new MM7Server("http://localhost:9090/");
        _server.ServerMode = MM7ServerMode.VASP;
        _server.AuthScheme = AuthenticationSchemes.Basic;
        _server.Authentication += OnAuthentication;
        _server.DeliverRequest += OnDeliverRequest;
    }

    public void Start()
    {
        _server.Start();
    }

    private void OnDeliverRequest(object sender, DeliverReqEventArgs e)
    {
        //MMS received from MMSC on VASP MMS Endpoint.

        // Save all MMS message parts to the Delivered folder
        string path = Path.GetFullPath("Delivered");
        path = Path.Combine(path, e.Request.TransactionID);
        Directory.CreateDirectory(path);

        foreach (MMSPart part in e.Message.Parts)
        {
            part.Save(Path.Combine(path, part.GetFileName()));
        }
    }

    private string OnAuthentication(MM7Server server, AuthenticationEventArgs e)
    {
        //check username
        if (e.UserName == "test")
        {
            string password = "password from db";

            // return password
            return password;
        }

        // not authenticated.
        return null;
    }
}

                                            Public Class MMSServerForVASPExample
	Private _server As MM7Server

	Public Sub New()

		_server = New MM7Server("http://localhost:9090/")
		_server.ServerMode = MM7ServerMode.VASP
		_server.AuthScheme = AuthenticationSchemes.Basic
		AddHandler _server.Authentication, AddressOf OnAuthentication
		AddHandler _server.DeliverRequest, AddressOf OnDeliverRequest
	End Sub

	Public Sub Start()
		_server.Start()
	End Sub

	Private Sub OnDeliverRequest(ByVal sender As Object, ByVal e As DeliverReqEventArgs)
		'MMS received from MMSC on VASP MMS Endpoint.

		' Save all MMS message parts to the Delivered folder
		Dim path As String = System.IO.Path.GetFullPath("Delivered")
		path = System.IO.Path.Combine(path, e.Request.TransactionID)
		Directory.CreateDirectory(path)

		For Each part As MMSPart In e.Message.Parts
			part.Save(System.IO.Path.Combine(path, part.GetFileName()))
		Next part
	End Sub

	Private Function OnAuthentication(ByVal server As MM7Server, ByVal e As AuthenticationEventArgs) As String
		'check username
		If e.UserName = "test" Then
			Dim password As String = "password from db"

			' return password
			Return password
		End If

		' not authenticated.
		Return Nothing
	End Function
End Class
